BOGE C Series & C-2 Series
BOGE's compact screw compressor range — 2.2 to 22 kW, plug and work.

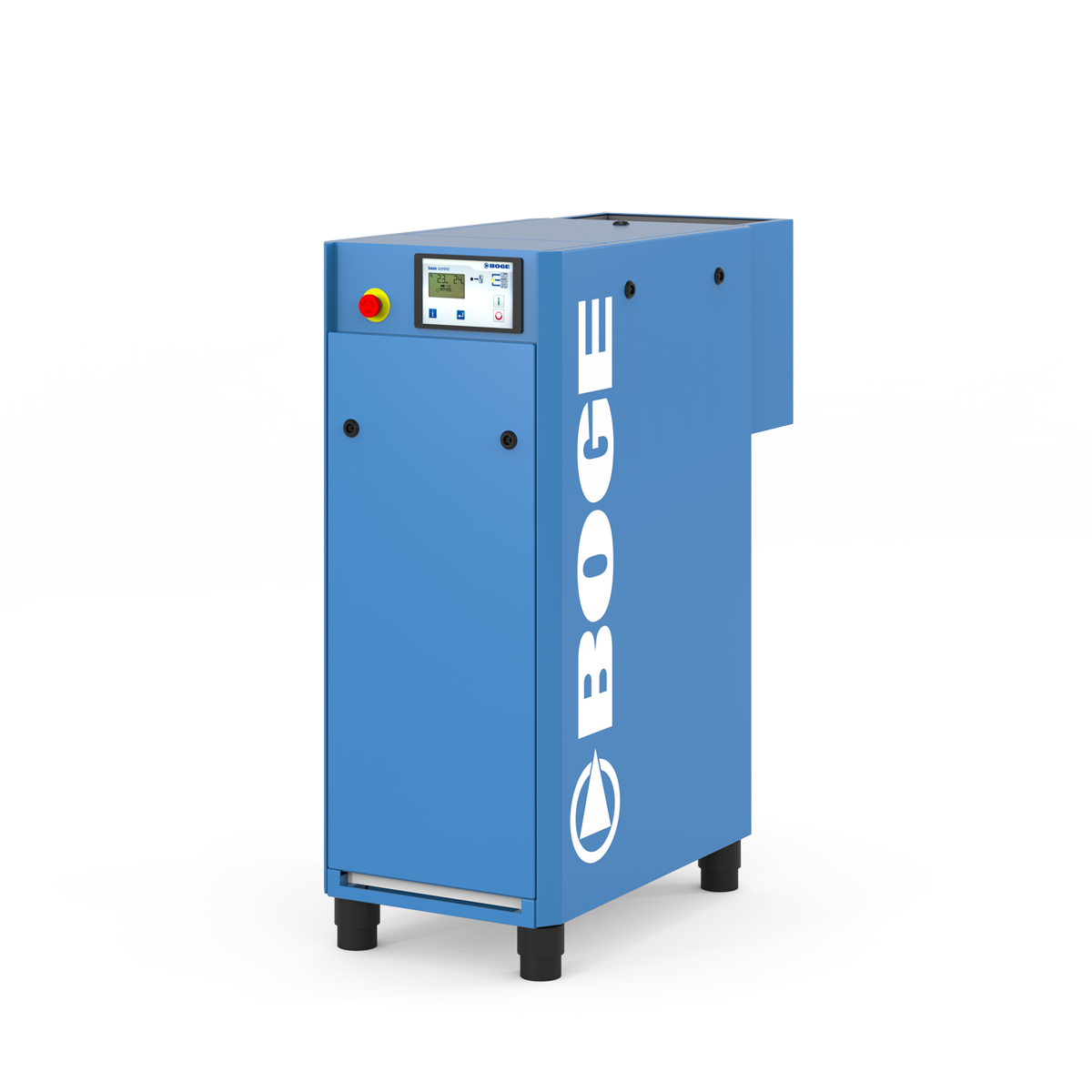

Perfection in the smallest of spaces.
The BOGE C series has acquired a reputation for being particularly reliable: the number of pipes and connections has been kept to a minimum, which keeps maintenance simple. The modular design lends itself to fully customisable and integrated complete solutions, so maximum performance and efficiency come with a minimal footprint.
The motto “plug and work” applies to all models and configurations. Even if you specify an optional compressed air receiver you receive a fully wired compact unit, meaning you can configure your compressed air station whichever way suits your needs.
| Series | Power range | Drive options | Notable options |
|---|---|---|---|
| C series | 2.2 – 15 kW | Belt drive or direct coupled | On-receiver design, integrated refrigerant dryer, frequency control on 7.5 and 11 kW |
| C-2 series | 11 – 22 kW | Direct coupling, belt drive or frequency control | More receiver options, integrated refrigerant dryer, heat recovery |
Authorised BOGE Distribution
Only genuine BOGE products and parts — assuring you of manufacturer-backed quality and warranty protection on every installation.
Factory Trained Engineers
Our engineers are trained by BOGE and experienced across all major compressor brands — diagnosing and resolving issues fast.
Right First Time Specification
We assess your application, flow requirements and environment to specify the right equipment, saving time, money and downtime.
Compact design
Designed to provide generous free air delivery under continuous operation with the smallest footprint in their class — even configured as a full station on a receiver with a dryer.
Effective insulation
All models are packaged with a high grade cast iron fully integrated modular airend for optimum protection and additional sound dampening. C 4 to C 9 models include a sound enclosure as standard.
Efficiency-optimised compression
An optimised screw profile and BOGE's compact integrated airend design mean increased free air delivery with minimal power consumption, and less pipework means reduced flow losses.
Integrated frequency control
On all C-2 models, optional integrated frequency control matches volumetric flow to actual demand — reducing energy use and prolonging service life by cutting harmful start/stop cycles.
Optional refrigerant dryer
Whether base-mounted or on-receiver, the optional refrigerant dryer is totally integrated and requires no additional space.
Choice of receivers
Receiver sizes up to 750 litres across all performance classes. Machines from 11 to 22 kW are available on a galvanised receiver for significantly better corrosion protection.
The Four Pillars of Our Compressed Air Service
Our comprehensive support covers your entire system — from initial supply and installation through to ongoing planned maintenance and emergency cover.
Supply
Authorised BOGE and Nano supply with full manufacturer warranty and genuine parts.
Installation
Full system installation and commissioning by our factory-trained engineers.
Maintenance
Planned maintenance contracts keeping your system running at peak efficiency.
Support
24hr emergency breakdown cover and priority callout across the South West.
Control, from one machine to a whole station
The standard base control has everything needed to run the compressor autonomously as a turnkey station, including automatic frost protection and integrated leak monitoring that identifies system leaks during production downtime. Above that sit focus control 2.0 for networking up to four machines, master control for load and idle optimisation, and airtelligence provis 3 for an unlimited station.
