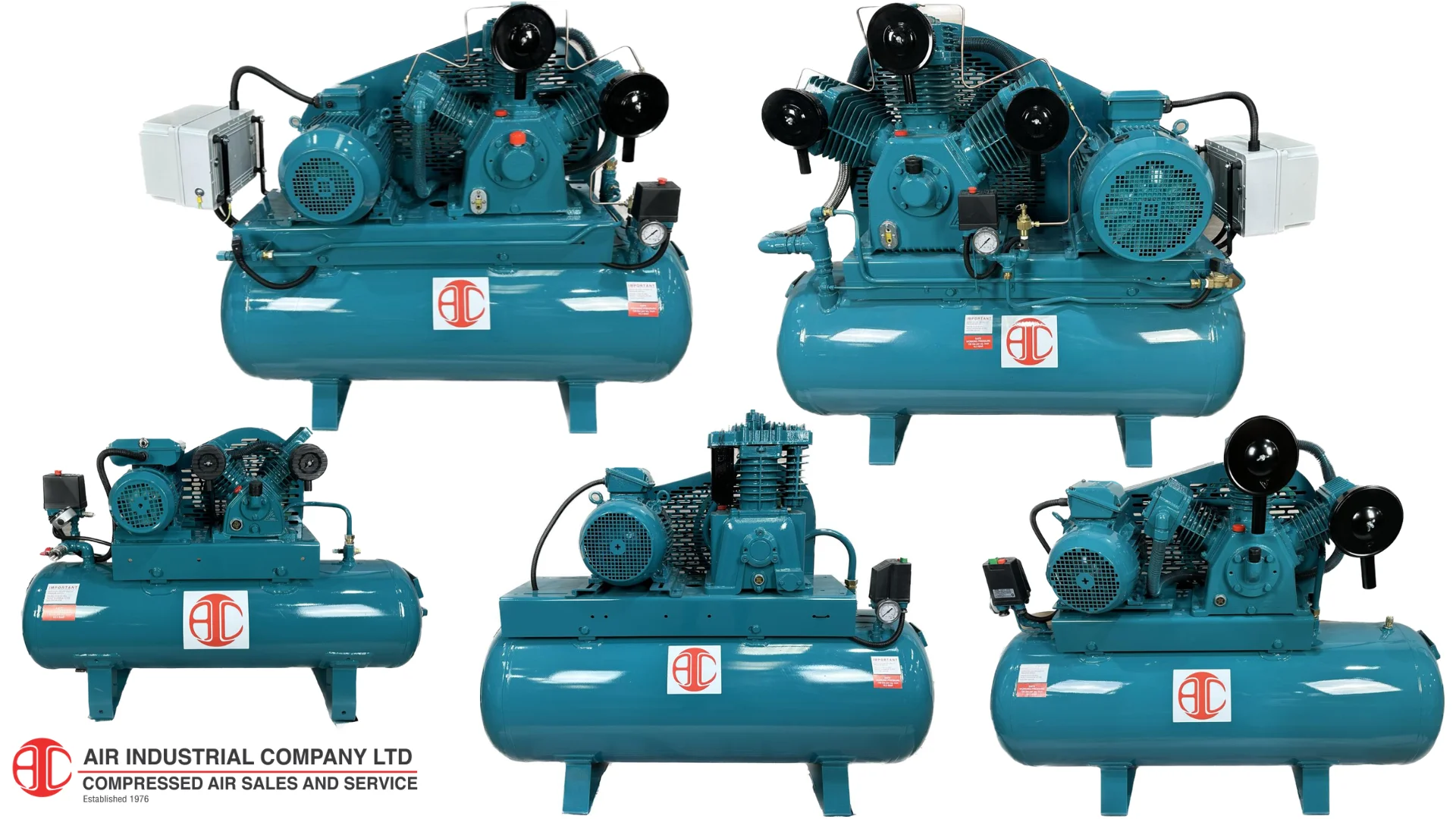

Piston Compressors

All CAST IRON heavy duty piston compressors

LOW NOISE / LOW  RPM

The Premier  Product

Assembled In the UK designed for 24 hour, 7 day operation.

Using High Precision Modern production methods.

Auto stop as standard.

Continuous operation head unloading, via off loading valve available upon request.

3 HP to 15 HP at 150 PSI / 11bar. (6CFM unto 82 CFM Displacement)

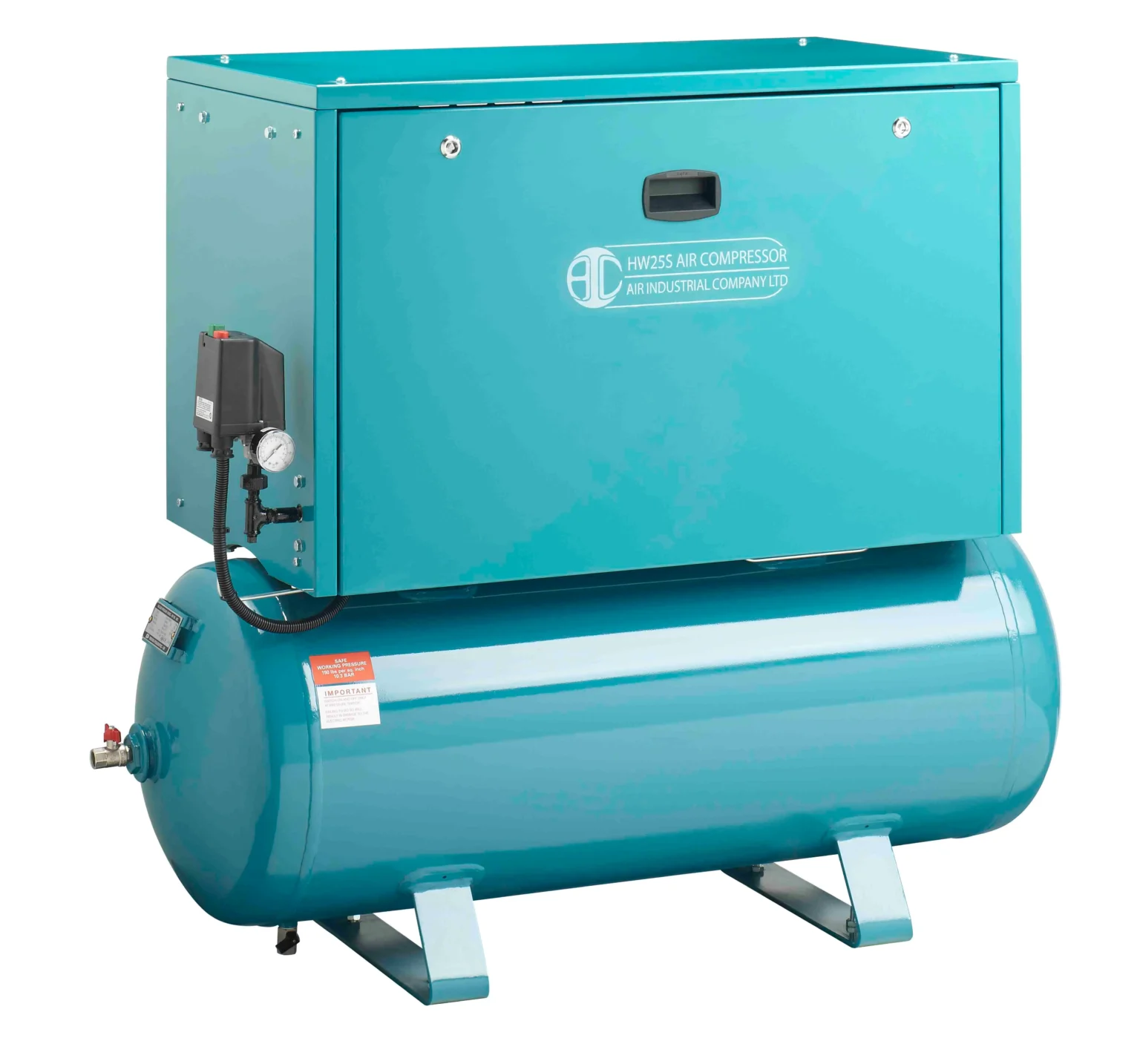

Also available in silenced enclosure price  upon request.

Dynamically balanced crankshaft forged from high tensile alloy steel. nExtra large oil
capacity with oil sight glass.

Precision machined Cylinder walls and high quality ball or tapered roller bearings.

Phone 01934620151 mobile 07889690208 e mail [email protected]



PRICE LIST 2022

 PREMIER RANGE OF PISTON COMPRESSORS

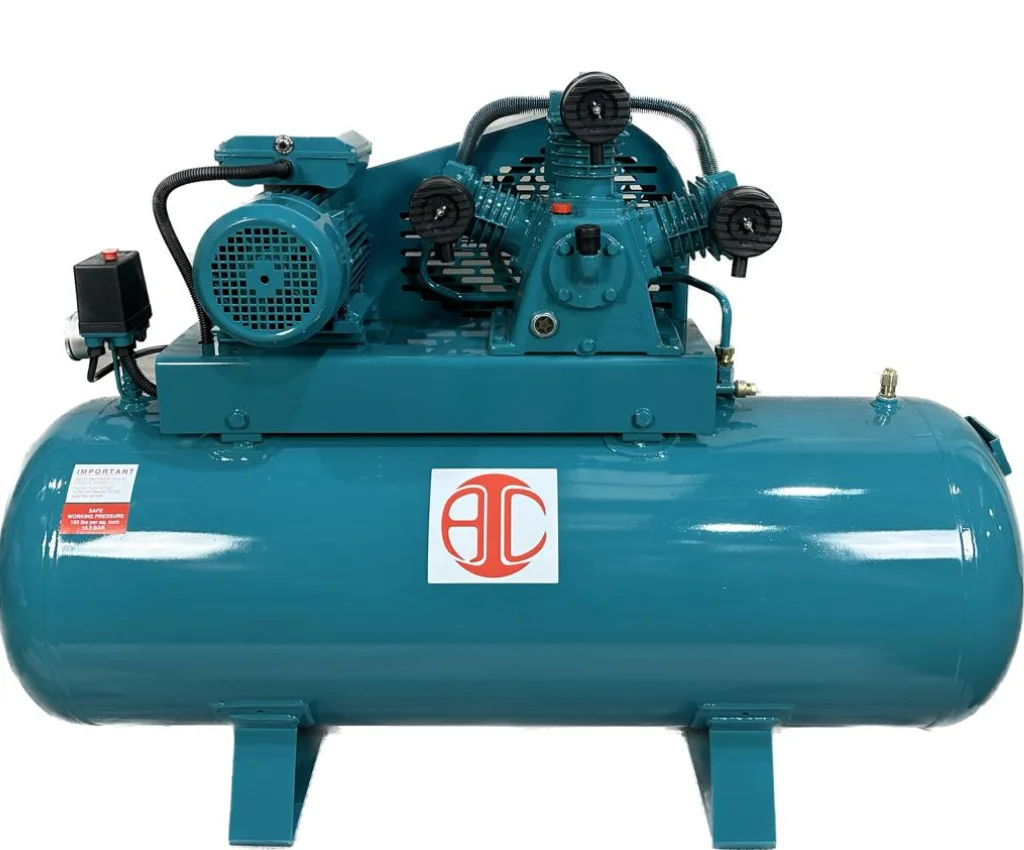

CAST IRON - LOW SPEED - HEAVY DUTY - STATIONARY HORIZONTAL RECEIVER MOUNTED

Model Dis / cfm  F.A.D cfm  KW HP VOLTAGE

RECEIVER

PRICE EX VAT
HV 12  11.00   7.40       1.5 230 / 415 100 £.  904.62
HW16  16.00  10.80  2.2  3.0  415 100 £ . 944.62
HW16  16.00  10.80  2.2  3.0  230 100 £.  986.15
HW16  16.00  10.80  2.2  3.0   415 150 £.  983.08
HW16  16.00  10.80  2.2  3.0  230 150 £1,021.50
HW16  16.00  10.80  2.2  3.0  415 200 £1,066.15
HW16  16.00  10.80  2.2  3.0  230 200 £1,106.15
HW16 Tandem  32.00  21.20  2.2 x 2  3.0 x 2  230 272 £2,255.38
H 21 Invertor   21.00  14.70    4.0  200/230 200 £2,095.38
H 21   21.00  14.70    4.0  415 200 £1,475.38
H 21 200 PSI  21.00  14.70    4.0  415 200 £1,489.23
HW 25   23.00  17.20 4  5.5  415 200 £1,649.23
HW 25 200 PSI  23.00  17.20 4  5.5  415  200 £1,475.38

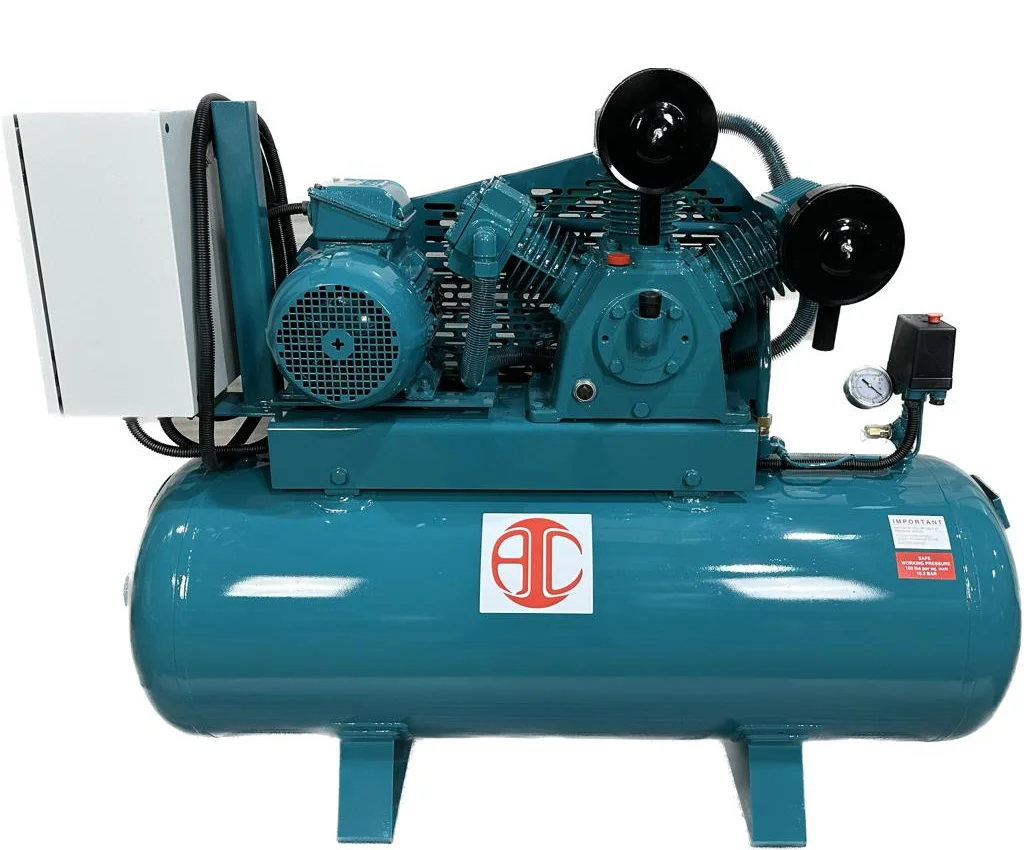

HW 25 Invertor  23.00  17.20 4  5.5  415 200 £2,258.46
H32 200PSI  31.00  24.50 5.5  7.5  415 270 £1,990.77
HW 32  33.00  24.70 5.5  7.5  415 270 £1,881.54
HW 45  41.00  31.00 7.5 10.00  415 270 £2,653.85
HW 45 200 PSI  41.00  31.00 7.5 10.00  415 270 £2,769.23
HW 50  48.00  33.00 7.5 10.00  415 270 £2,653.85
HW 65   60.00  46.40 11 15.00  415 270 £3,366.85
HW 85  82.50  54.00 11 15.00  415 270 £3,375.38
